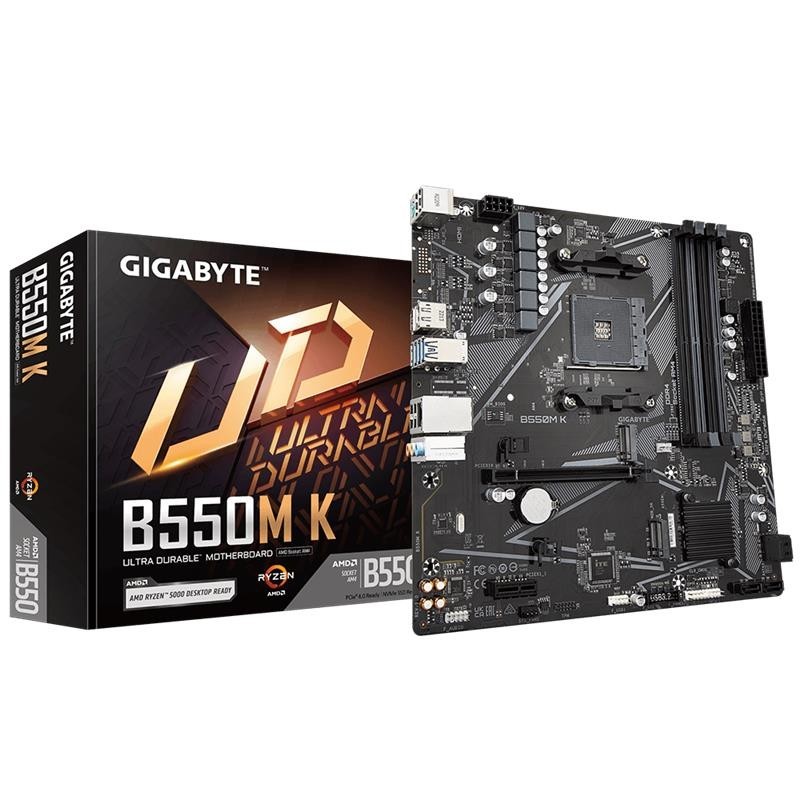

PLACA BASE GIGABYTE GA-B550M-K AMD AM4 HDMI + DP

94,00 €
Impuestos incluidos
Categorías:
Placas Base
Fuera de stock
  • Supports AMD Ryzen? 5000 Series/ Ryzen? 5000 G-Series/ Ryzen? 4000 G-Series and Ryzen? 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra Durable? PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GbE LAN with Bandwidth Management
  • Rear DisplayPort and HDMI for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
Estoy interesado en este producto, por favor contacta conmigo
Email:
( leer )
Cantidad
Lista de deseos
Comparar

Procesador
  1. AMD Socket AM4, support for: AMD Ryzen? 5000 Series/ Ryzen? 5000 G-Series/ Ryzen? 4000 G-Series and Ryzen? 3000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
  1. AMD B550
Memoria
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Integrados
Integrated Graphics Processor:
  1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
  1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Puertos de Expansión
1 x PCI Express x16 slot, integrated in the CPU:
  1. AMD Ryzen? 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen? 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
  1. Supporting PCIe 3.0 x1 mode
Interfaz de Almacenamiento
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
  1. AMD Ryzen? 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen? 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
  1. Supporting PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
  1. Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Conectores Internos de E/S
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 2 x M.2 Socket 3 connectors
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  12. 1 x Clear CMOS jumper
Conectores del Panel Trasero
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 4 x USB 3.2 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks
Controlador de E/S
  1. iTE® I/O Controller Chip
Monitorización H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
Software Incluido
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Sistema Operativo
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Diseño
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
GA-B550M-K

Ficha de datos

Socket
AM4
Chipset
AMD B550
Factor
Micro-ATX
